Model: ARE 1.1

Features:

Machine for the production of electro-welded mesh panels.

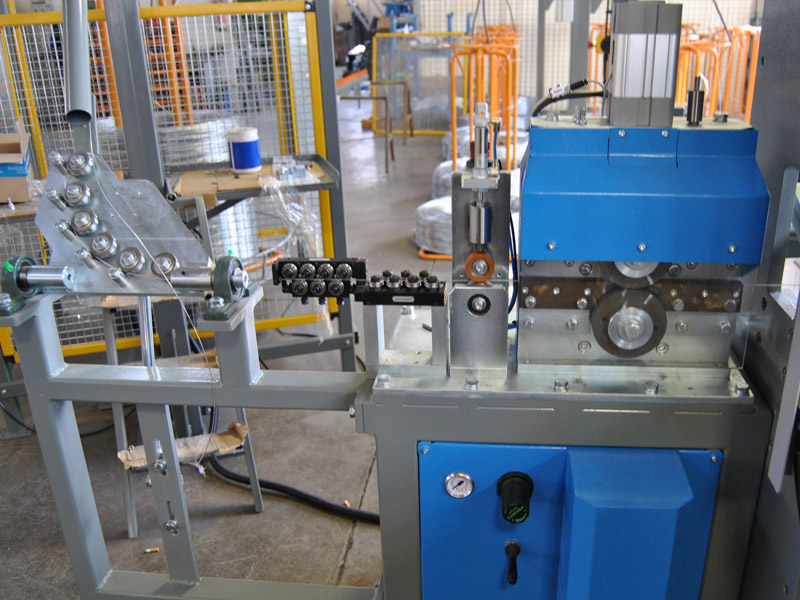

All wire feeding by coil, the wires are straightened before the welding phase.
The computerized management of the machine allows rapid change of transversal steps that make up the panel.
It is possible to make embossments on the product panel, position and quantity of bosses definable by software.
The possibility of the machine to connect to the network allows to make
Remote Support

Technical data:

Panel heigth: 1Mt

Max panel length: 2Mt

Wire diameter: 1.5/3mm

Cross wires min. step: 15mm

Longitudinal wires step: 25mm

Step for minute: 85

Wires supply format: coils
