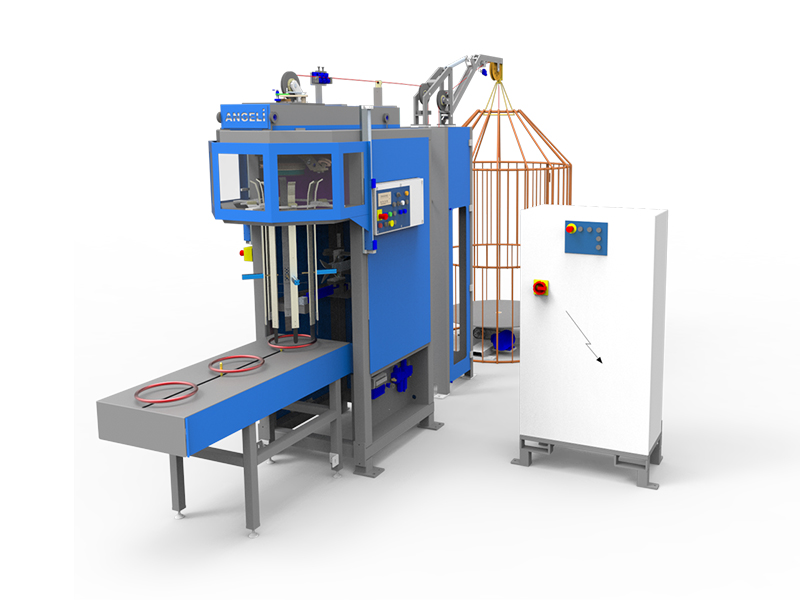

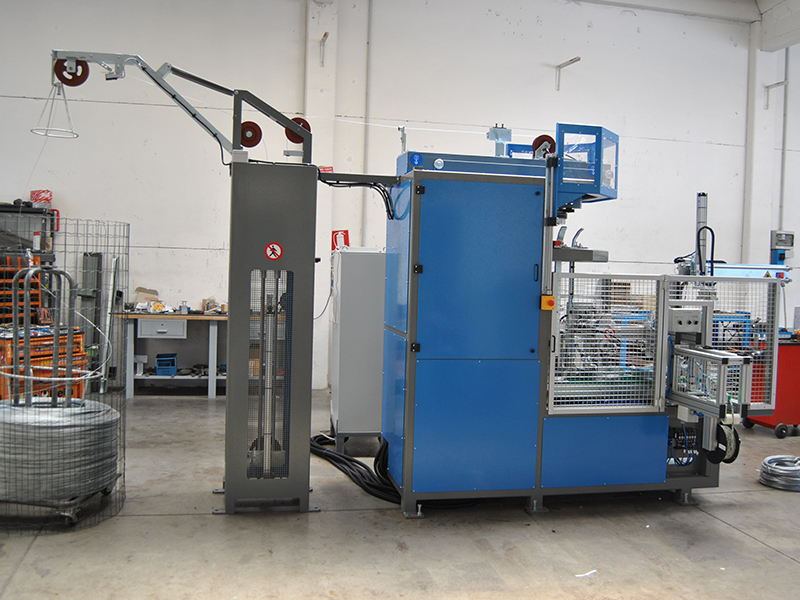

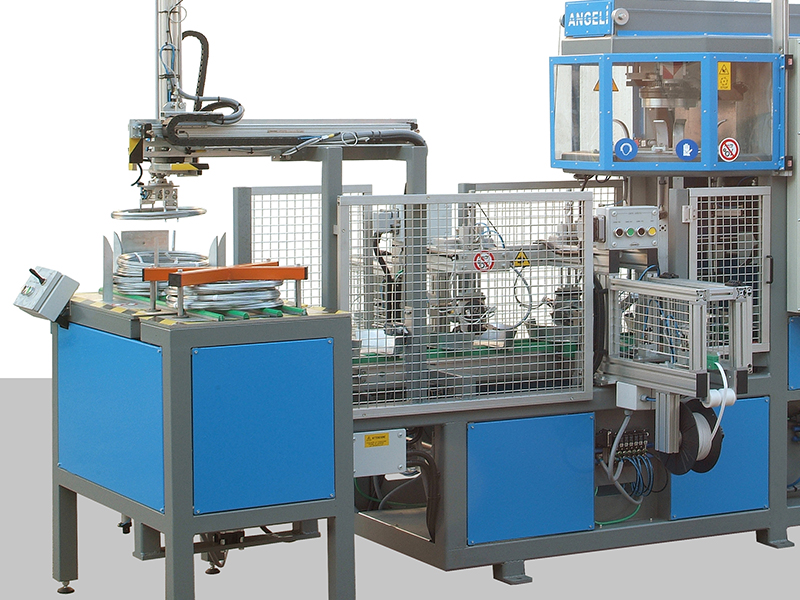

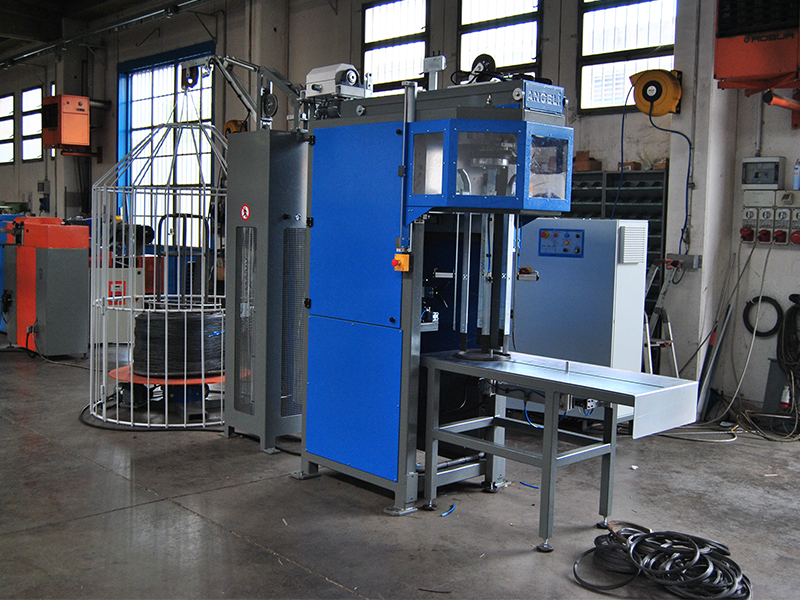

Model: AV-TZ

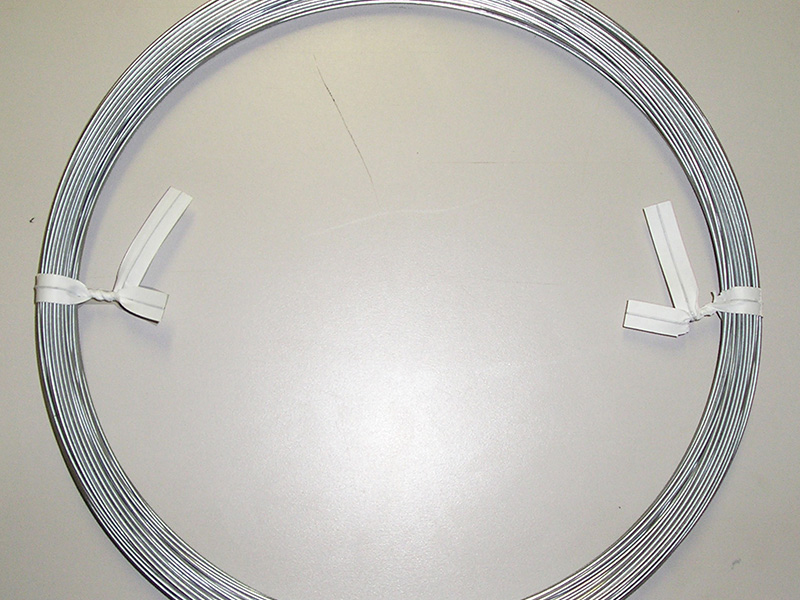

The machine packs in a continuous cycle without stops for cutting and tying; standard skeins, the skein that is produced has a spiral that appears free of tension to make it easy to use even when the binding constraints are removed.
The winding, the heart of the machine, is made with rotating capstan in reverse direction of the wire winding satellite, Angeli specific technique.
The system adopted for towing on the capstan is V-shaped, with possibility to change the angle according to the diameter of the wire.
The Angeli AV-TZ model can be supplied in different variants depending on the type of binding requested by the customer:
AV-TZ without binding modules

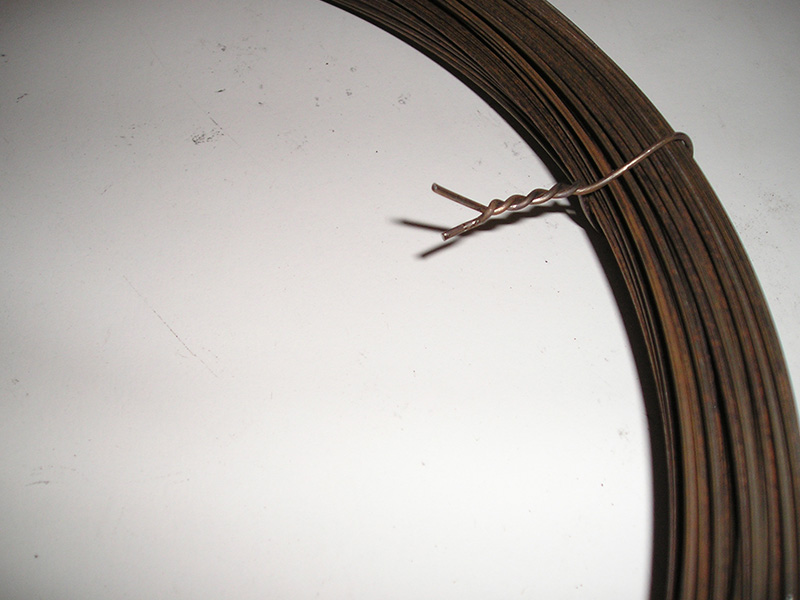

AV-TZ-LF wire tying
AV-TZ-LR ligature ties

Get brochure

Technical data:

Product diameter: int.275/est.285mm

Wire diameter: 0.9/2.2mm

Max speed: 6-7 mt/sec

Cut type: automatic without cicle stop

Optional: grouping desk

Optional: motorized uncoiler
