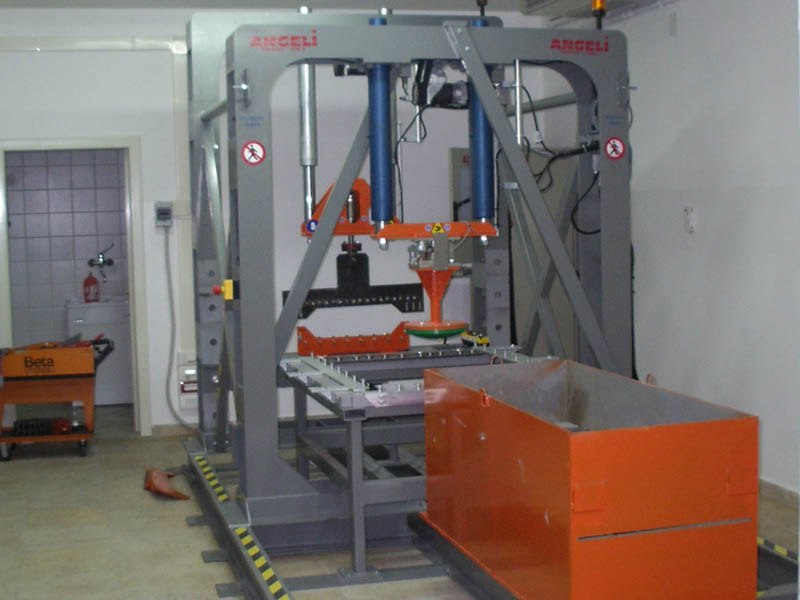

WIRE-TEST is a model built following the specifications requested by one of our customers,
the purpose of this machine is to test the mechanical properties in this case of hexagonal mesh wire mesh. Using a hydraulic system able to develop a force of 18000daN the machine is able to perform the following types of tests:

- Vertical traction test on individual wires

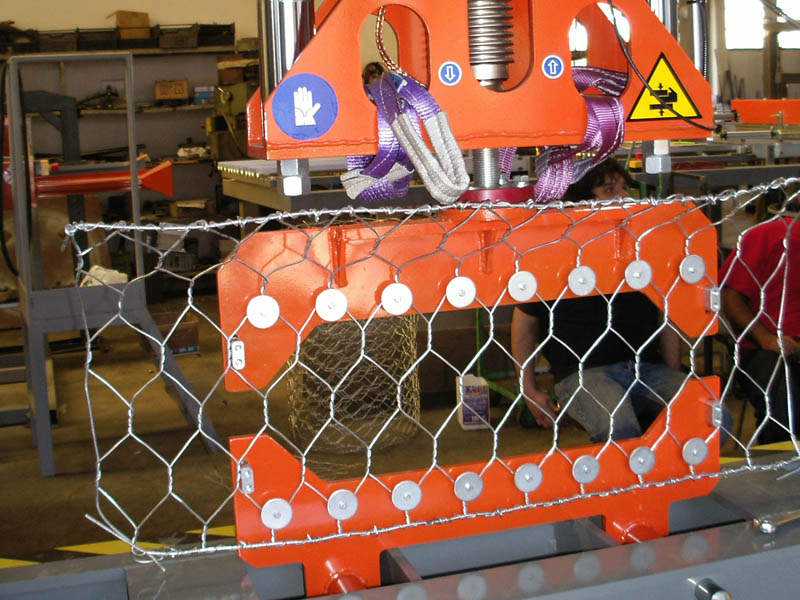

- Vertical traction test on mesh panel

- proof of the extraction of the mesh panel immersed in a compressed ground

-office cut of the network panel immersed in a compressed ground

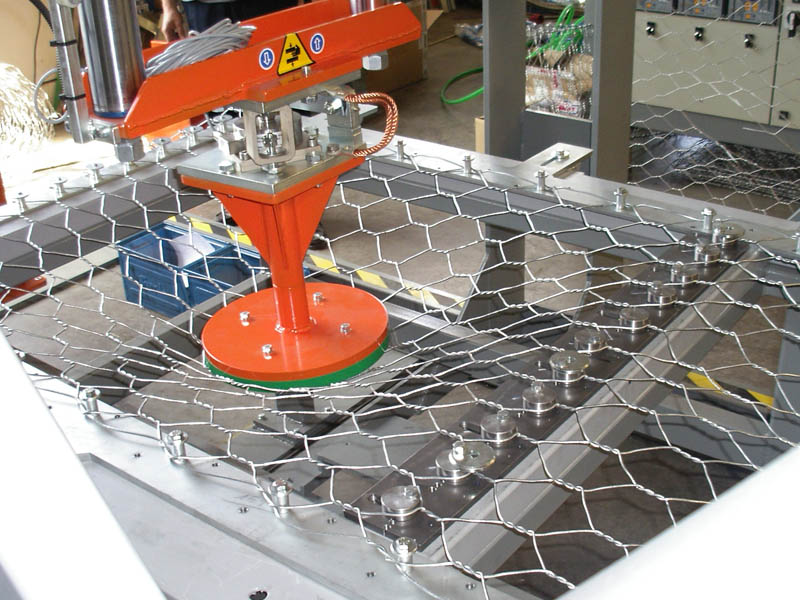

- punching the mesh panel

Technical data:

Max applicable force: 18000daN

Application speed: da 1mm/min a 100mm/min

Testable mesh type: hexagonal mesh
