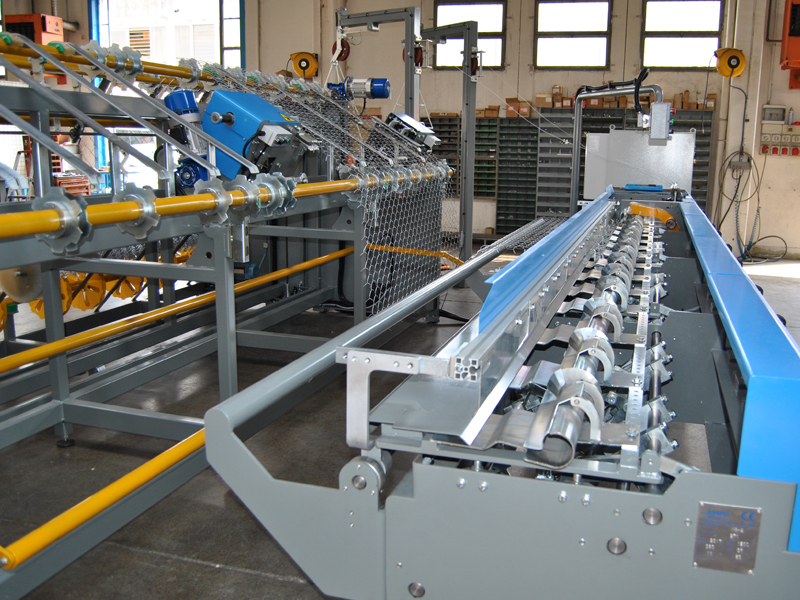

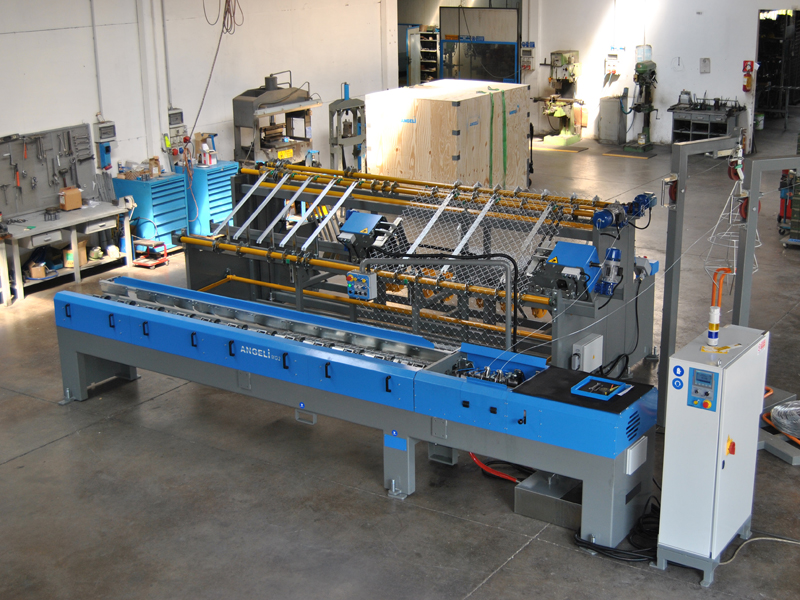

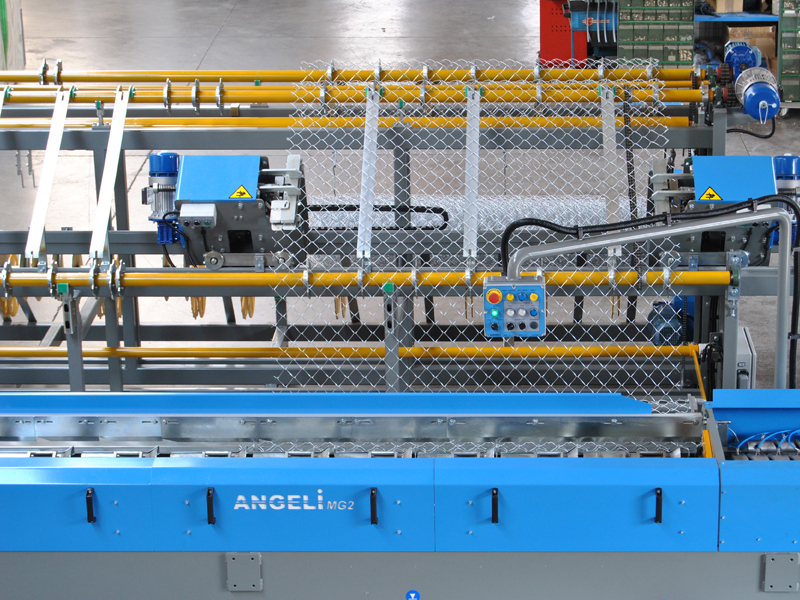

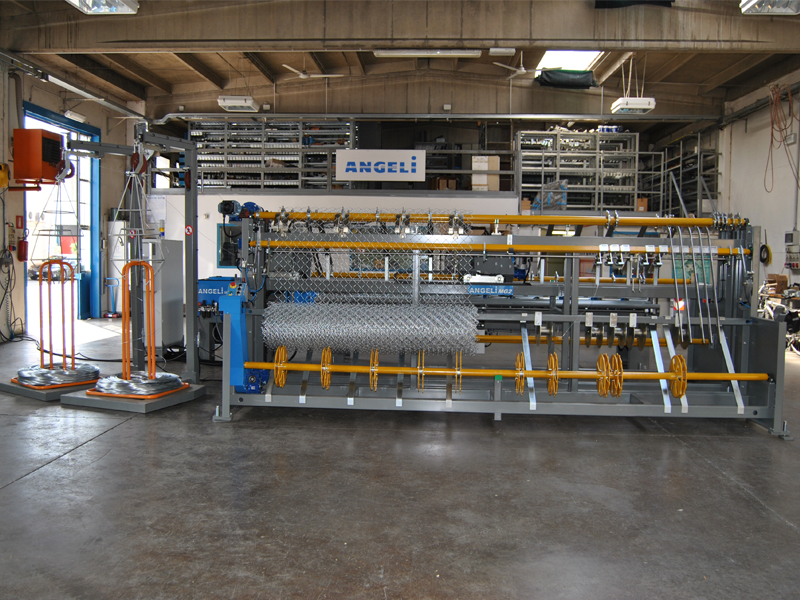

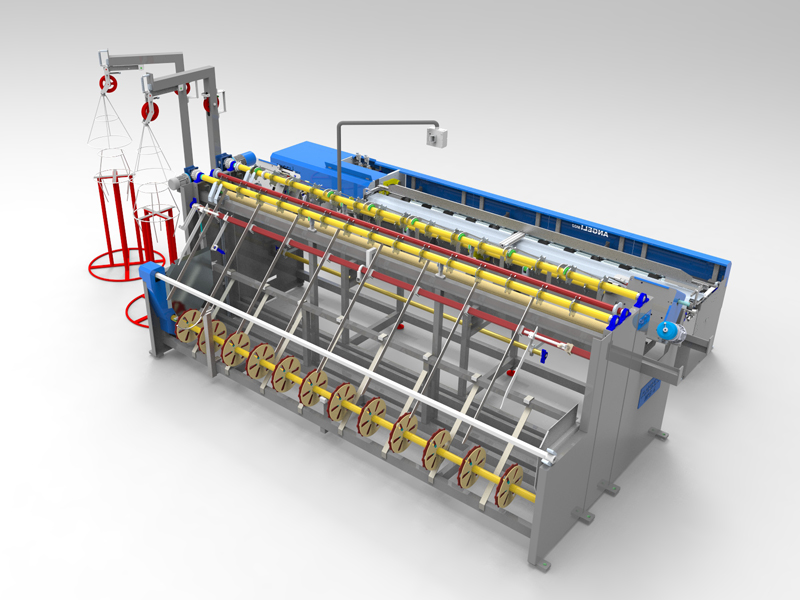

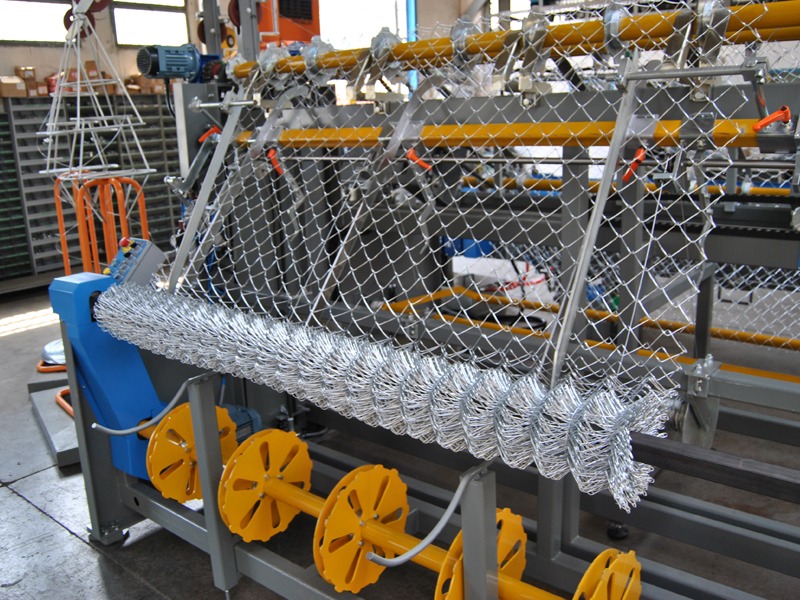

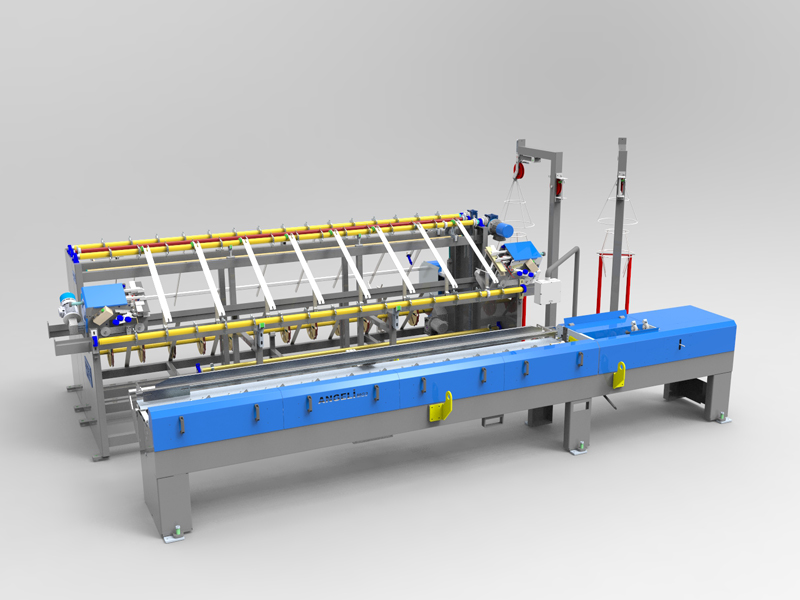

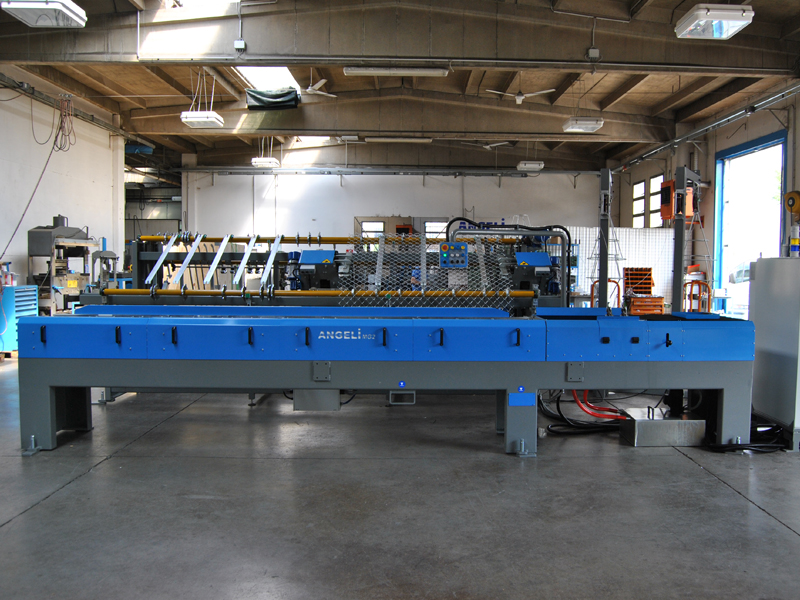

Model: MG-2


The model ANGELI MG-2 is the only machine for the production of wire mesh powered by two wires that works each wire separately, this feature allows to obtain a uniform product even using wires with hardness not constant. Computerized management of all functions.
Adoption of security devices a rules that guarantee the machine the automatic operation and automatic shutdown in the event of an inconvenience.
Great versatility that allows you to adapt our machine is to the needs of the great industry, both those of the small artisan.
On request it can integrate the Angeli
module COM-U for the automatic ejection of the rolls.

Get brochure

Techical data:

Max mesh height: 200/300/400cm

Wire diameter: 1.7/4.5mm

Roll type: large/compact

Mesh size: from 40x40 to 80x80

Max spindle speed: 900 Rpm

Wire type: galvanized or PVC coated
